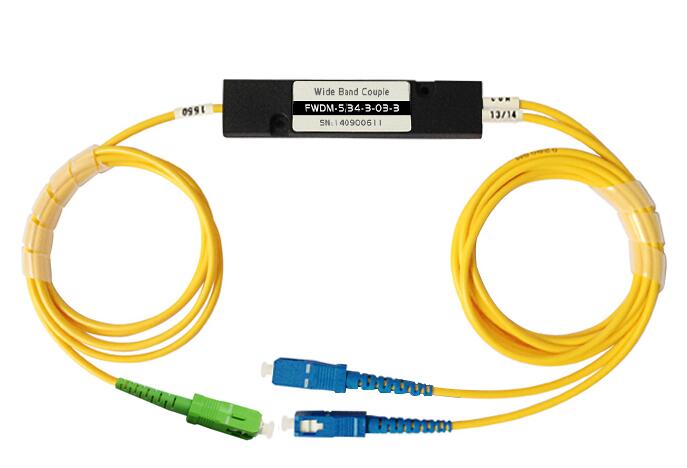

产品名称：3-Port PON WDM
产品型号：
产品类别：光纤产品
产品规格：
产品备注：
产品说明：
| Parameter | Specification | Unit |
| Operating Wavelength |
1310 band：1260~1360 |
nm |
|
1490 band：1480~1500 |
nm | |
|
1550 band：1550~1560 |
nm | |
| Transmission Insertion Loss |
Typ.0.6,Max.0.8 |
dB |
| Reflection Insertion Loss |
Typ.0.4,Max.0.6 |
dB |
| Transmission Isolation |
≥30 |
dB |
| Reflection Isolation |
≥15 |
dB |
| Return Loss |
≥45 |
dB |
| PDL |
≤0.1 |
dB |
| Directivity |
≥50 |
dB |
| Operating Temperature |
-5~+70 |
℃ |
| Storage Temperature |
-40~+85 |
℃ |
| Package Dimension |
Φ5.5x38 |
mm |
Notes: All values referenced without connector.
